Table top tray sealing machine
| Modèle | JR-T450S |
| Max film width | 450 mm |
| Max film diameter | 240 mm |
| Output | ≈700 trays per hour (4 trays) |
| Vitesse d'emballage | 8 seconds/cycle |
| Gas mixing accuracy | ±2% |
| Gas replacement rate | ≥99% |

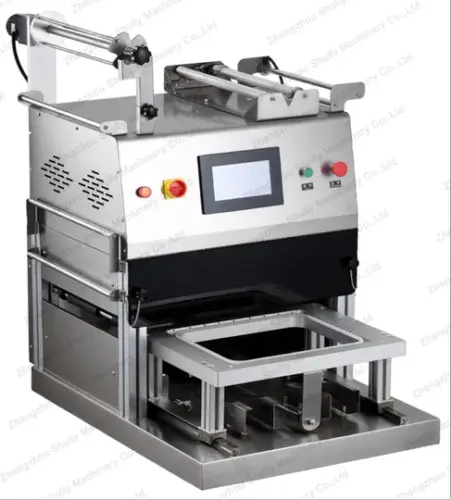

Shuliy table top tray sealing machine is a compact packaging solution designed for sealing food trays with modified atmosphere packaging (MAP). It uses gas flushing technology to replace the air inside the tray with nitrogen or mixed gases, effectively extending shelf life and maintaining product freshness.
It has a capacity of 300-700 boxes/hour, and ≥99% gas replacement rate. Besides, its gas mixing accuracy is ±2%. Its inflation method is airflow-based.
This type of MAP packaging machine is ideal for small to medium-sized businesses, including restaurants, food shops, and processing plants that require efficient and hygienic packaging.
Key Advantages of Table top Tray Sealing Machine
- Compact Design, Powerful Performance
- Small footprint, making it suitable for limited workspace while still delivering high packaging efficiency.
- Accurate Gas Replacement for Freshness
- With a gas replacement rate of ≥99% and precise mixing accuracy, the tabletop MAP packaging machine effectively prevents oxidation and inhibits bacterial growth.
- Easy Operation with Touch Screen
- Equipped with an intuitive touch panel, operators can easily control the packaging process with a one-click start.
- Strong Sealing and Attractive Packaging
- The sealed trays are firm, leak-proof, and visually appealing, improving product presentation and market competitiveness.

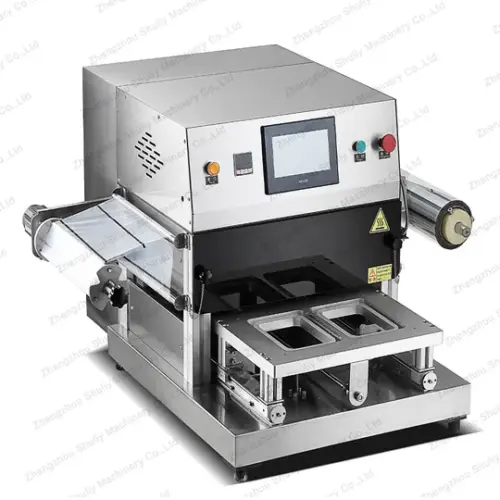

Shuliy Tabletop Tray Sealer Machine Models
We provide multiple models to meet different capacity and tray size requirements:
| Replacement form | Air flow | Air flow | Air flow | Air flow |
| Modèle | JR-T330S | JR-T380S | JR-T450S | JR-TH380S |
| Max film width (mm) | 330 | 380 | 450 | 370 |
| Max film diameter (mm) | 240 | 240 | 240 | 240 |
| Vitesse d'emballage (seconds/cycle) | 8 | 8 | 8 | 8 |
| Output (trays/hour) | ≈400 (2 trays) | ≈700 (4 trays) | ≈700 (4 trays) | ≈300 (1 tray) |
| Gas replacement rate | ≥99% | ≥99% | ≥99% | ≥99% |
| Gas mixing accuracy | ±2.5% | ±2.5% | ±2% | ±2% |
| Power (kW) | 1.6 | 2.8 | 3.5 | 3.5 |
| Tension | 220 V/50 Hz | 220 V/50 Hz | 220 V/50 Hz | 220 V/50 Hz |
| Air pressure (MPa) | 0.6–0.8 | 0.6–0.8 | 0.6–0.8 | 0.6–0.8 |
| Matched air compressor (L) | 60 | 60 | 90 | 90 |
| Poids de la machine (kg) | 102.5 | 120 | 150 | 145 |
| Taille de la machine (mm) | 845 × 1030 × 730 | 1089 × 979 × 800 | 1350 × 1210 × 800 | 1050 × 730 × 1070 |
| Packing gross weight (kg) | 120 | 140 | 170 | 170 |
| Outer carton size (mm) | 1260 × 1020 × 850 | 1189 × 1079 × 950 | 1450 × 1310 × 950 | 1150 × 830 × 1220 |
| Max tray size (mm) | 1 tray: 370 × 260 × 80 2 trays: 260 × 170 × 80 | 2 trays: 310 × 200 × 80 4 trays: 200 × 140 × 80 | 2 trays: 370 × 260 × 80 4 trays: 260 × 170 × 80 | 1 tray: 380 × 305 × 135 2 trays: 305 × 175 × 135 |
How Does a Tabletop Tray Sealing Machine Work?
The working process is simple and highly automated:
- Product Placement
- Place food such as fresh meat, fruits, or ready meals into the tray.
- Vacuum and Gas Flushing
- The MAP packing machine first removes air from the tray, then injects nitrogen or mixed gases with high precision.
- Tray Sealing
- A heated film seals the tray tightly, ensuring a strong and leak-proof package.
- Finished Packaging
- The final product features firm sealing, extended freshness, and an attractive appearance.
Applications for Tabletop MAP Packaging Machine
Our table top tray sealing machine has a wide range of applications, like:
- Fresh-Cut Fruits and Vegetables
- Pre-cut fruit salads and platters
- Vegetable snack packs
- Fresh herb packages
- Organic produce packs
- Deli and Prepared Foods
- Sliced deli meats and cheeses
- Prepared salads and sandwiches
- Ready-to-eat meals
- Marinated meats and poultry
- Bakery and Desserts
- Fresh pastries and cakes
- Sandwiches and wraps
- Dessert platters
- Baked goods
- Seafood Products
- Live seafood transport (with oxygen enrichment)
- Fresh fish fillets
- Shellfish and shrimp
- Smoked seafood
Thus, it’s widely used in Retail & Catering, such as:
- Supermarkets
- Food shops
- Restaurants
- Central kitchens
What’s the Table Top Tray Sealing Machine Price?
The price of tabletop MAP packaging machines varies based on model specifications, production capacity, and features. As a direct manufacturer, Shuliy offers competitive factory pricing without middleman markups.
Price Factors
- Film Width: 330mm, 380mm, or 450mm capacity options
- Capacité de production: 300-700 boxes/hour depending on model
- Tray Configuration: Single, dual, or quad box options
- Special Features: Oxygen enrichment for live seafood
- Personnalisation: Special tray sizes, branding options
If need a specific quote, welcome to contact us at any time!
